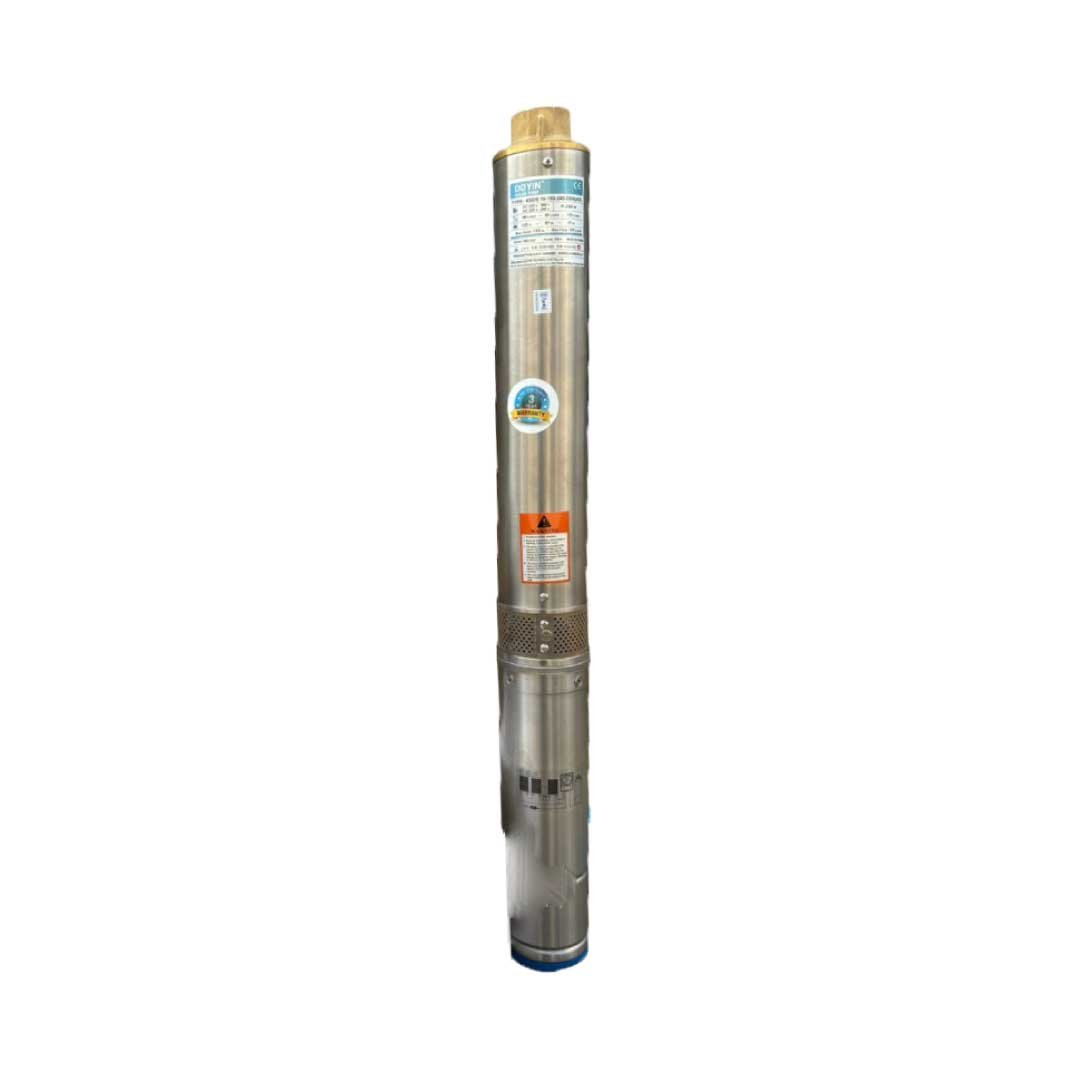

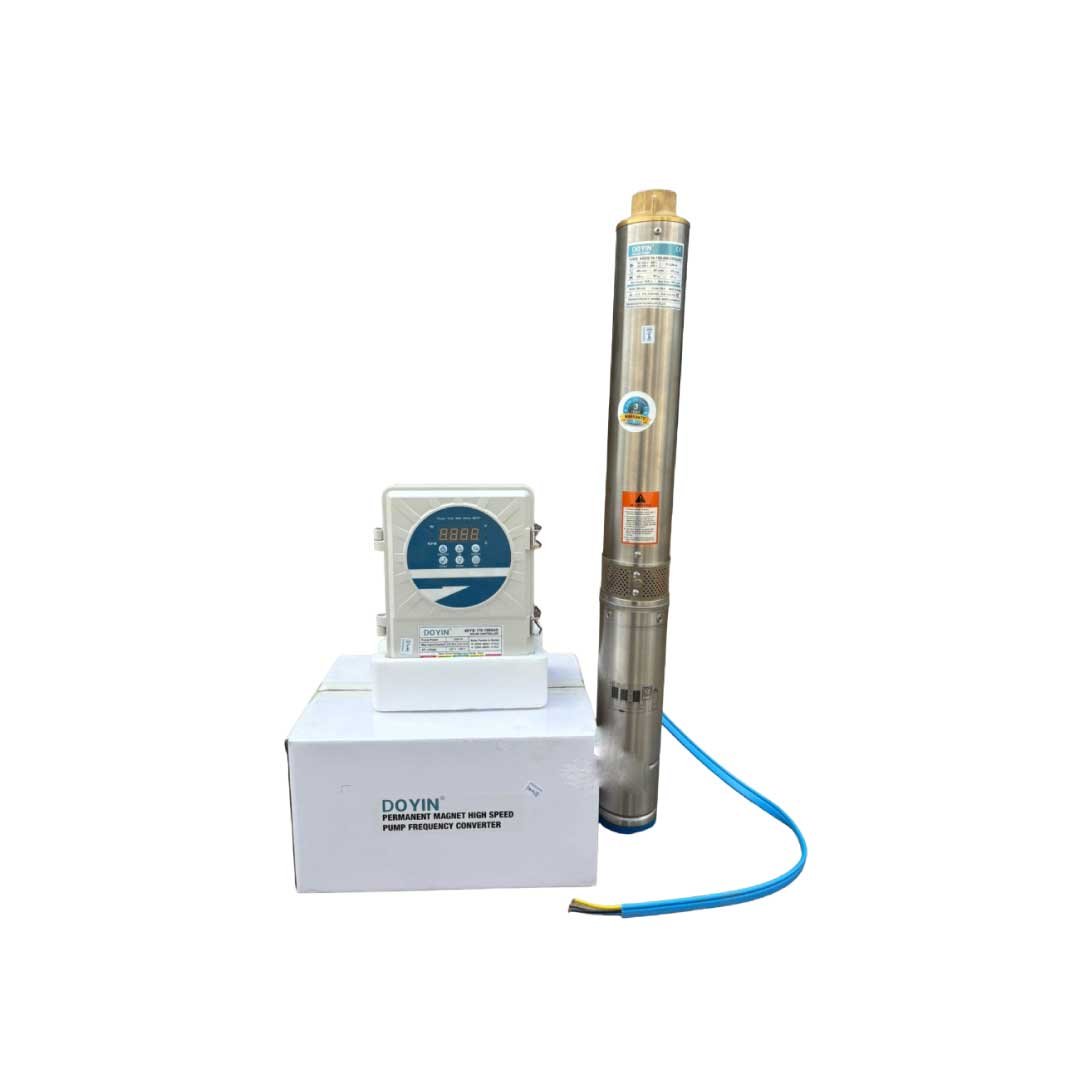

Doyin 4SDS10-2200W (3.0HP) AC/DC Hybrid Borehole Submersible Pump

The Doyin 4SDS10-2200W (3.0HP) AC/DC Hybrid Borehole Submersible Pump is a premium high-flow borehole pump engineered to deliver exceptional water volume and impressive pumping depth for demanding residential, commercial, agricultural, and institutional applications. Powered by a 2,200W (3.0HP) high-efficiency brushless motor, this hybrid pump operates seamlessly on both AC power (grid or generator) and DC solar power, ensuring uninterrupted water supply regardless of power availability.

Delivering an outstanding 10,000 litres per hour (10.0m³/h) with a maximum pumping head of 155 metres, the Doyin 4SDS10-2200W AD is ideal for large estates, irrigation systems, hotels, institutions, industrial facilities, and off-grid solar water projects. Its corrosion-resistant stainless steel body is built for continuous underwater operation in harsh borehole environments, while the brushless motor offers superior efficiency, reduced maintenance, and long service life.

Designed to run directly on solar DC power without requiring an inverter, this hybrid submersible pump minimizes installation costs while providing reliable, energy-efficient water pumping for high-demand applications.

Key Features of Doyin 4SDS10-2200W (3.0HP) AC/DC Hybrid Borehole Pump

• Brand: Doyin
• Model: 4SDS10-2200W (AD)
• Product Type: AC/DC Hybrid Borehole Submersible Pump
• Motor Power: 2,200W (3.0HP)
• Motor Type: High-Efficiency Brushless Motor
• Maximum Flow Rate: 10.0m³/h (10,000 Litres/Hour)
• Maximum Pumping Head: 155 Metres
• Recommended Borehole Depth: 0–122 Metres
• Power Supply: AC (Grid/Generator) & DC (Solar)
• Recommended Solar Array: 6 × 550W Solar Panels
• Pump Diameter: 4-Inch Borehole Pump
• Body Material: Corrosion-Resistant Stainless Steel
• Suitable Water: Clean and Fresh Water Only
• Direct Solar DC Operation (No Inverter Required)
• Low Maintenance Design

Applications

• Large residential estates and apartment complexes
• Commercial agricultural irrigation
• Hotels, resorts, and conference centres
• Universities, hospitals, and institutions
• Industrial and manufacturing facilities
• Reservoir and water storage tank filling
• Community water supply systems
• Off-grid solar water pumping projects

Benefits

• Pumps up to 10,000 litres per hour for high-volume water supply
• Powerful 155-metre pumping head supports medium-to-deep borehole installations
• Hybrid AC/DC operation guarantees uninterrupted water supply
• Operates directly on solar power without an inverter, reducing installation costs
• High-efficiency 3.0HP brushless motor delivers reliable performance with low energy consumption
• Stainless steel construction provides outstanding corrosion resistance and durability
• Low maintenance design minimizes downtime and servicing costs
• Ideal for agricultural, commercial, institutional, and residential applications

Why Choose the Doyin 4SDS10-2200W AD?

• Combines a 10,000 L/h flow rate with an impressive 155-metre pumping head
• Provides the perfect balance between high water volume and deep borehole capability
• True AC/DC hybrid operation allows seamless switching between solar, grid, and generator power
• Direct solar operation eliminates the need for an inverter, simplifying installation
• Premium stainless steel construction ensures long-lasting performance
• Compatible with HDPE and PPR piping systems and non-return valves (NRVs)
• Proven reliability in Kenyan and East African borehole installations
