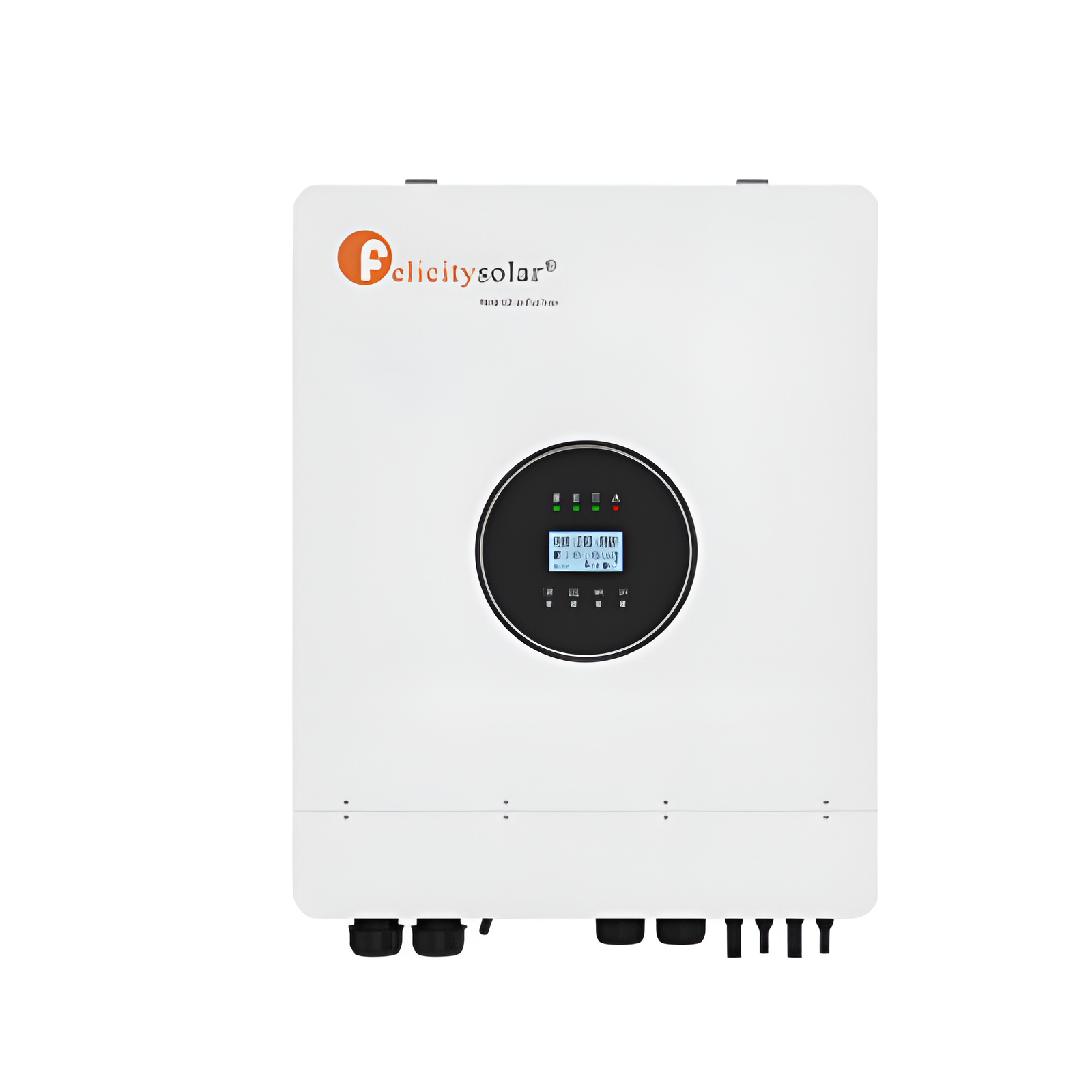

Felicity 6Kw Hybrid Inverter –High Frequency

Model: IVEM6048-II

6KVA 48V High Frequency Inverter-6KW

Built in 7500MPPT Charger controller

PV input Voltagr 100 -450V

Built In Wi-fi Module

1. Automatically transfer between battery and line mode
2. High-reliability Microprocessor control
3. Remote control and BTS terminal
4. Support Parameter Setting Via LCD
5. Overload/Over temperature/ Short Circuit Protection
6. Compatibile with Mains Votage-230V Ac
7. Inverter running without battery

PRODUCT DESCRIPTION AND DETAILS

Felicity Solar Hybrid Inverter High Frequency Pure Sine Wave6KVA 48V Inverter (6KW) with 6000W MPPT PV InputVoltage 100-500V (IVEM6048)

The Felicity Solar Hybrid Inverter 6KVA 48V (IVEM6048) is a high-capacity, high-performance inverterdesigned to provide reliable and efficient power for medium to large-scale solar installations. This 6KW puresine wave inverter integrates both solar charging (via MPPT) and grid charging capabilities, offering a robustsolution for homes, businesses, and off-grid applications. With a built-in 6000W MPPT solar chargecontroller, the inverter maximizes the efficiency of solar energy conversion, ensuring that your solar panelarray performs optimally in varying sunlight conditions. The 100V-500V PV input voltage range allows for awide selection of solar panel configurations, providing flexibility in designing a solar system tailored to yourspecific power requirements. Whether you’re looking to optimize your solar energy use, reduce electricity costs, or ensure reliable backup power, the Felicity Solar Hybrid Inverter provides the performance ,reliability, and flexibility you need for long-term energy independence.

High-Frequency Hybrid Design

The IVEM6048 inverter employs high-frequency hybrid technology, which ensures improved efficiency and alightweight, compact form factor. This design reduces internal energy loss, making the inverter more efficientthan traditional low-frequency models. With its hybrid capabilities, the inverter is capable of functioning inboth off-grid and grid-connected systems, providing optimal performance in various energy configurations.

Pure Sine Wave Output

As a pure sine wave inverter, the Felicity Solar Hybrid Inverter delivers clean and stable AC power, just likethe electricity provided by the grid. This type of output is crucial for powering sensitive electronics such ascomputers, televisions, medical devices, and other appliances that require a constant and undistorted powersource. By using pure sine wave technology, the inverter ensures the safe and efficient operation of allconnected devices, without the risk of damage from voltage spikes or electrical interference

Built-in 6000W MPPT Solar Charge Controller

The IVEM6048 features an integrated 6000W MPPT (Maximum Power Point Tracking) charge controller,designed to extract the maximum possible power from your solar panel array. MPPT technology ensures thatthe inverter continually adjusts its charging process based on environmental conditions, allowing for moreefficient battery charging, especially under fluctuating sunlight. With 6000W of MPPT capacity, this invertersupports larger solar arrays, making it ideal for medium to large-scale solar power systems.

Wide PV Input Voltage Range (100V-500V)

The Felicity Solar Hybrid Inverter supports a wide PV input voltage range of 100V to 500V, allowing forflexibility in system design. This broad range makes it compatible with a wide variety of solar panels, fromsmaller arrays to larger, high-capacity configurations. The inverter’s ability to handle a range of inputvoltages provides greater flexibility in designing a solar power system that meets your energy needs.

Intelligent Power Management

This inverter comes with an intelligent power management system that optimizes energy use from both solarpanels and the grid. The system can intelligently prioritize solar power when it’s available, using batterystorage to supply power when sunlight is insufficient. If solar power is not enough to meet energy demands, the system can seamlessly draw power from the grid, ensuring a continuous and stable energy supply foryour appliances. This smart energy management significantly reduces electricity bills and maximizes the useof renewable solar energy.

Advanced Safety and Protection Features

The Felicity Solar Hybrid Inverter is equipped with a variety of protection features to ensure the safety ofyour equipment and prevent damage under abnormal operating conditions:

• Overload Protection: Automatically shuts down the inverter to prevent damage when the load exceeds the inverter’s rated capacity.
• Short Circuit Protection: Disconnects the system when a short circuit is detected, protecting the inverter and connected devices.
• Over-temperature Protection: Reduces charging or halts operation when the inverter reaches unsafe temperature levels.
• Reverse Polarity Protection: Prevents damage to the inverter from incorrect connections of the battery or solar array.
• Overvoltage/Under voltage Protection: Ensures the system operates within safe voltage limits, preventing damage to both the inverter and connected devices.

LCD Display for Real-Time Monitoring

The LCD display on the IVEM6048 inverter provides real-time monitoring of the system’s performance and health. The display shows critical data such as:

• Battery Voltage
• Solar Panel Voltage
• Output Power
• Charge Current
• System Status (normal, fault, etc.)
• The intuitive interface allows users to easily monitor system performance, troubleshoot issues, and optimize energy usage for maximum efficiency.
