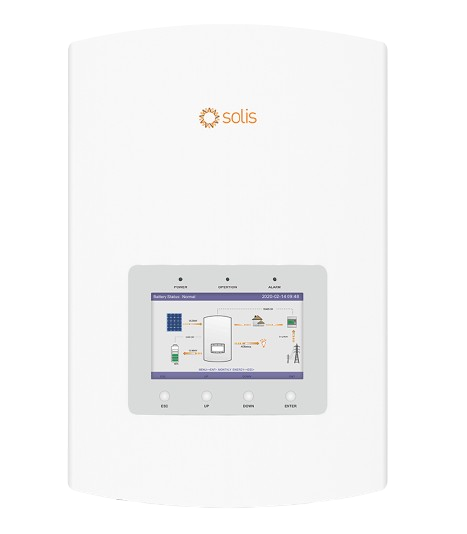

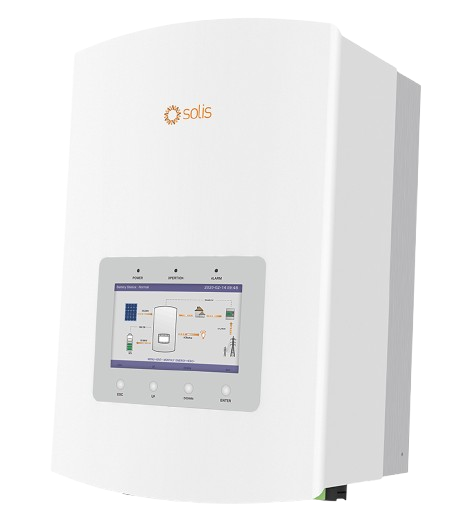

SOLIS 14KW-48V INVERTER-(S6 Series)

PRODUCT FEATURES.
• Supports PV input up to 160% of the inverter's rated DC power, maximizing solar utilization
• Supports up to 21A PV input current, compatible with future higher-power PV modules
• 200% overload for 10s in off-grid mode, ensuring stable startup of motors, water pumps and air
conditioners
• Seamless on/off-grid switching in under 10ms, guaranteeing an uninterrupted power supply
• More battery options, compatible with any battery (between 40V-60V)
• Supports existing PV grid-tied power connection for export control and off-grid use
• Support max 6 units in parallel, expanding system capacity
• Smart Load management, extending backup time for critical loads
• Customizable battery backup level for uninterrupted power
• Supports PV-only off-grid operation, reducing upfront costs
• Solis Cloud: Smart remote control, AI optimisation, and instant troubleshooting – all in one platform
• 7-inch industrial-grade touchscreen, providing a larger, user-friendly interface for local operation
• Multiple methods of generator connection and auto control, enabling flexible local deployment
• Ingress protection IP66, for operation in harsh conditions.
PRODUCT DESCRIPTIONS.
Solis S6-EH1P10K-L-plus 12kW 48V Hybrid Inverter is a single-phase hybrid inverter designed for
residential and small commercial solar systems. Built around a 48V battery architecture, it integrates
solar generation, battery storage, and grid interaction in one intelligent unit.
With dual MPPT inputs, the inverter maximises solar harvesting efficiency even on complex roof
layouts. It supports lithium (LiFePO₄) and lead-acid batteries, enabling flexible system design and
future upgrades.

Where the grid instability and rising electricity costs are common—Solis 12Kw hybrid inverter allows
energy storage, peak shaving, and backup power during outages. Rhema Solar Energy Solutions Ltd is
a certified Solis supplier in Kenya, providing competitive pricing, technical support, and fast delivery
across Nairobi, Mombasa, Kisumu, Nakuru, Eldoret, and East Africa.
Hybrid Energy Core
 12kW rated AC output
 Seamless grid + solar + battery integration
 Automatic switching during power outages
Solar Charging System
. Equipped with 3 independent MPPTs (PV 6 string inputs) supporting up to 20A per string and 160%
oversize DC solar input.
 Wide PV voltage input range
 Optimised energy yield in varying sunlight conditions
 UP TO 24000 watts maximum PV input power with 19200 watts usable power
Battery Management
 48V low-voltage battery compatibility
 Lithium BMS communication support
 Smart charging and discharge control
. High Efficiency: Maximum conversion efficiency up to 97–98%
Protection & Cooling
 Intelligent fan-assisted cooling
 Anti-islanding protection
 Overload, short circuit, and temperature protection

Benefits of Solis S6-EH 12KW Hybrid Inverter
 Lower Energy Bills: Optimizes solar energy use, reducing grid dependency
 Reliable Backup Power: Supports battery storage for power outages
 Smart Remote Monitoring: Track and manage system performance via SolisCloud
 Easy Installation: Compact, lightweight, and designed for single-phase systems
 Durable & Certified: Built to international quality and safety standards
