DEYE SUN 16KW Inverter
KSh360,000.00KSh365,000.00 (-1%)
17600VA/16000W 48V
Max PV Access/Input：32000W/25600W
Max PV Input Current：
26A+26A+26A/2+2+2
MPPT Range：150-425V
Max Charging/Discharging：290A
LV single Phase Hybrid up to 16 Units Parallel
IP 65
DEYE SUN 16KW Inverter

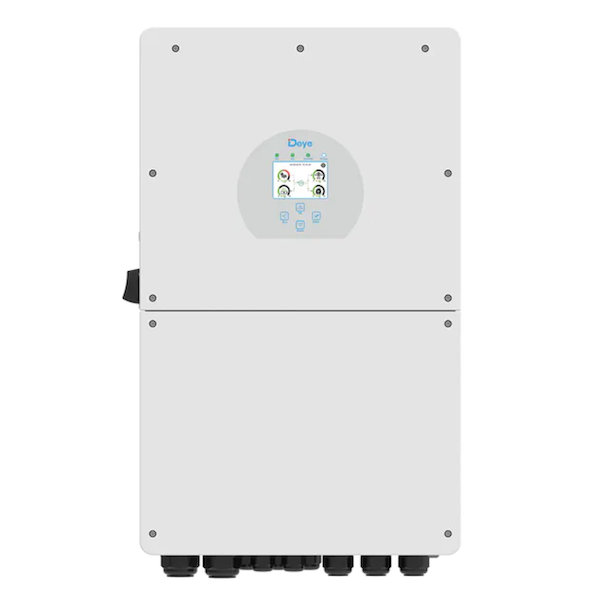

The Deye SUN-16K-SG01LP1-EU is a high-performance, single-phase, low-voltage hybrid solar inverter designed for residential and commercial applications. It features 16 kW of output power and three independent Maximum Power Point Trackers (MPPTs), making it highly versatile for complex solar panel arrays.
Key Features
- Hybrid Versatility: Seamlessly handles grid-tied, off-grid, and backup power operations.
- Battery Compatibility: Operates with 48V low-voltage lithium-ion and lead-acid batteries.
- Massive Charging Current: Features a maximum charge/discharge current of 290A, allowing for rapid battery cycling.
- Generator Support: Includes built-in support to store energy from diesel generators.
- Expandable: Supports parallel operation of up to 16 units for large-scale commercial scaling.
- Intuitive Control: Equipped with a colorful touch LCD screen and IP65 protection for outdoor/indoor installations.
Technical Specifications
- Rated Output Power: 16 kW
- Max. Efficiency: Up to 98%
- MPPT Channels: 3
- Battery Voltage Range: 40V – 60V
